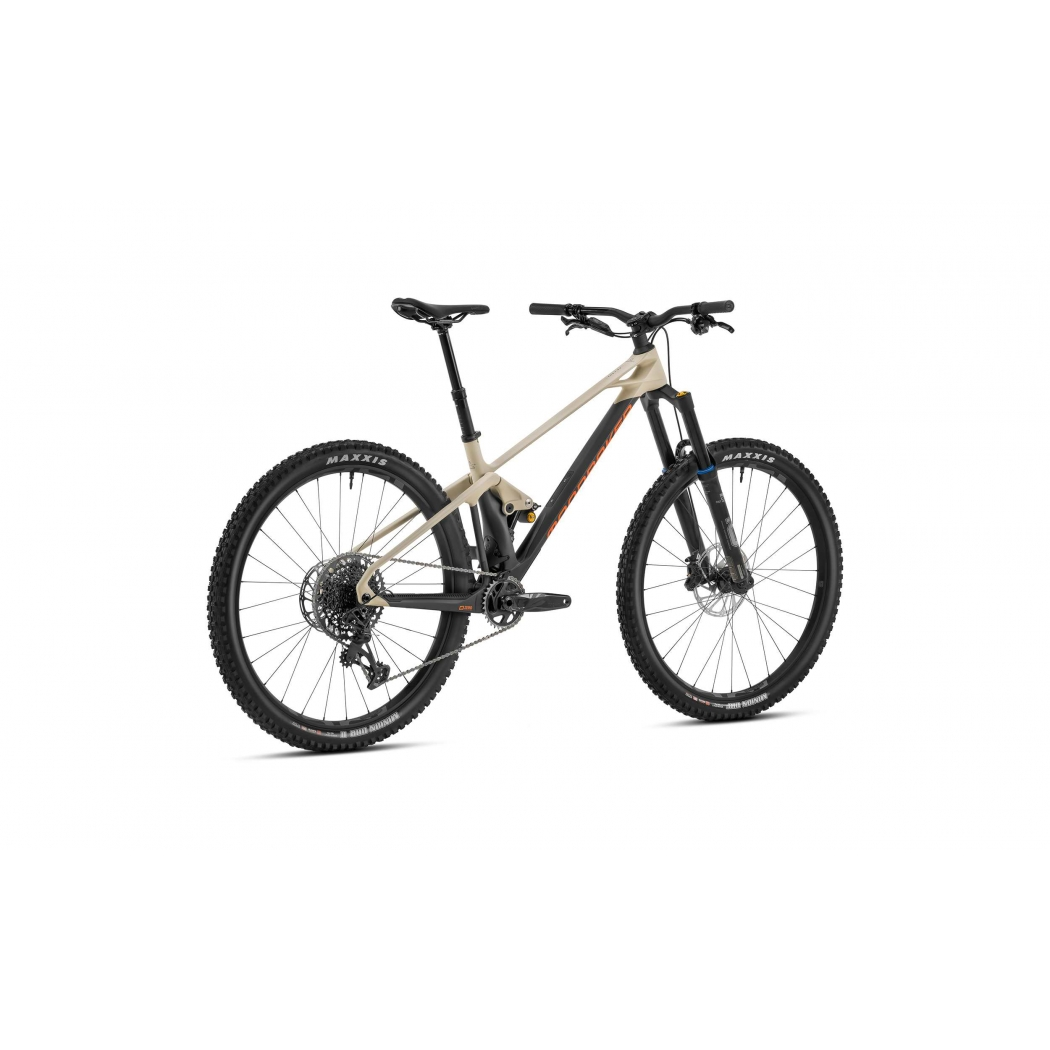

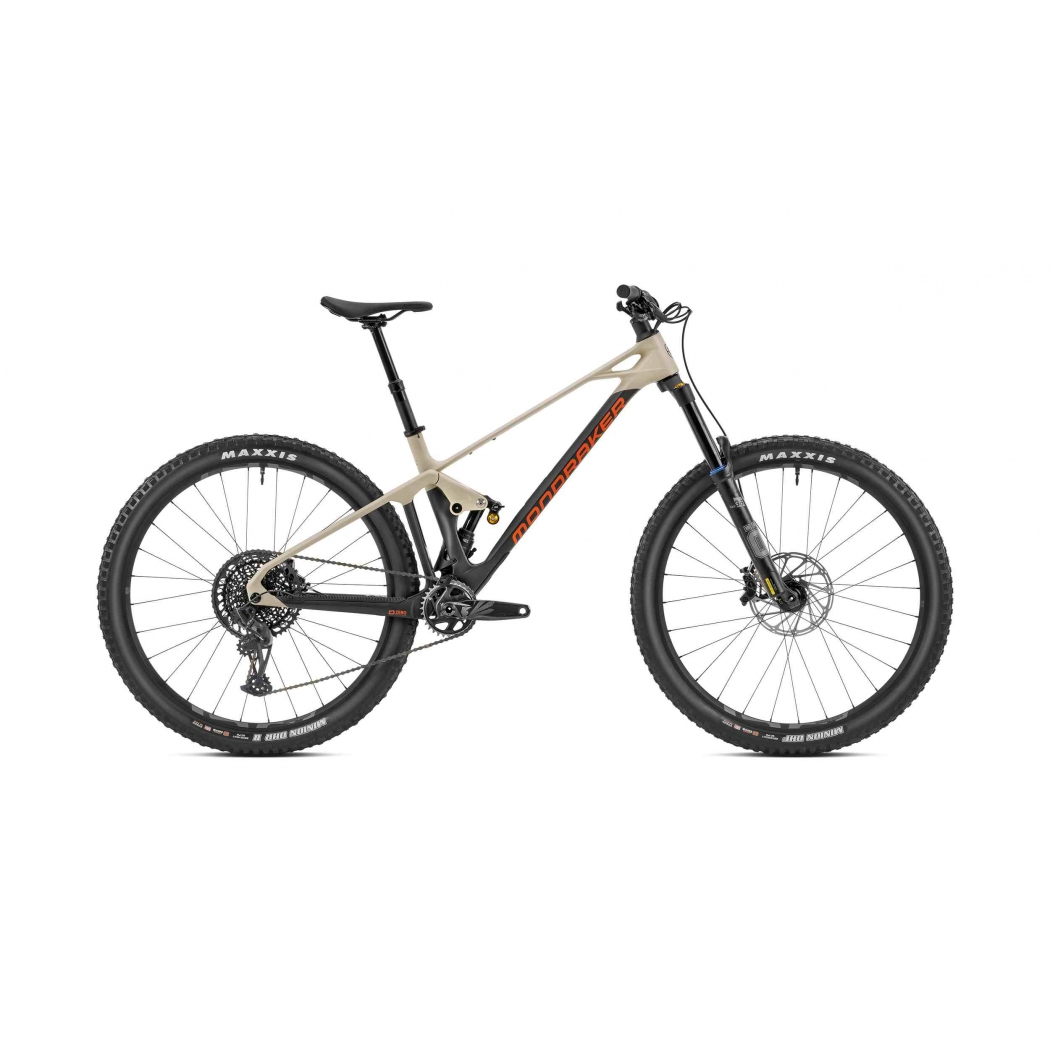

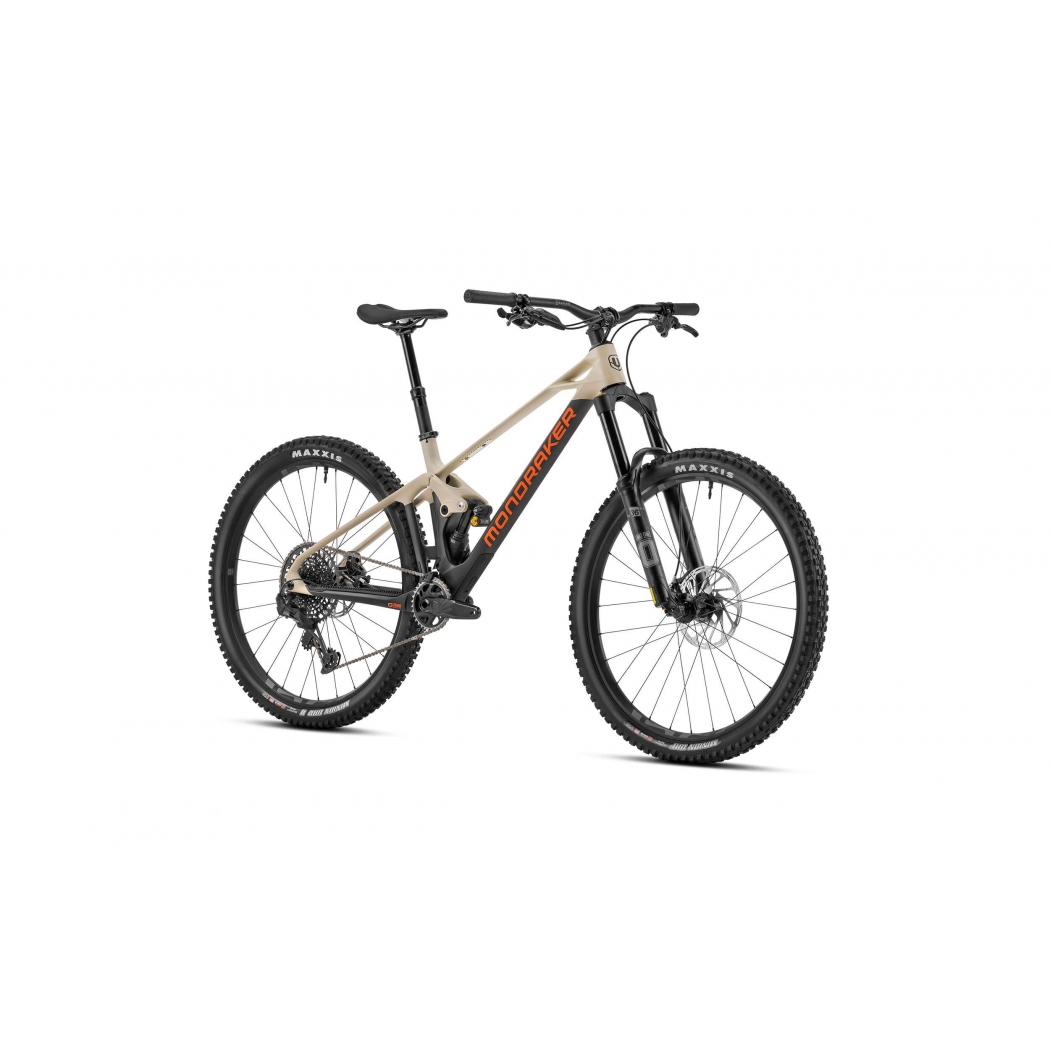

Mondraker Foxy Carbon RR
Â
| Fahrwerk | Â |
| Rahmen: | Foxy 29 Stealth Air full Carbon |
| Gabel: | Ă–hlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40 |
| Dämpfer: | Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Â | Â |
| Räder |  |
| Felgen: | e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Reifen vorne: Reifen hinten: | Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Nabe vorne: | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Nabe hinten: | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Speichen: | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Â | Â |
| Antrieb | Â |
| Schalthebel | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Umwerfer: | – |
| Schaltwerk: | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Kassette: | Sram XG-1275, 10-52T, 12s |
| Innenlager: | Sram DUB BSA, sealed bearings, 73mm |
| Kurbelgarnitur: | Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Pedale: | – |
| Kette: | Sram NX Eagle, 12s, Powerlock |
| Â | Â |
| Komponenten | Â |
| SattelstĂĽtze: | Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm |
| Sattel: | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Steuersatz: | Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing |
| Vorbau: | Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore |
| Lenker: | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Griffe | Onoff Desert, 1lock-on, 135mm |
| Bremsen vorne: | Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Bremsen hinten: | Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Â | Â |
| Sonstiges | Â |
| Farbe: | Matte Carbon / Desert Grey / Orange |
| Bike Gewicht in kg: | – |
| Weitere Ausstattung: | – |
